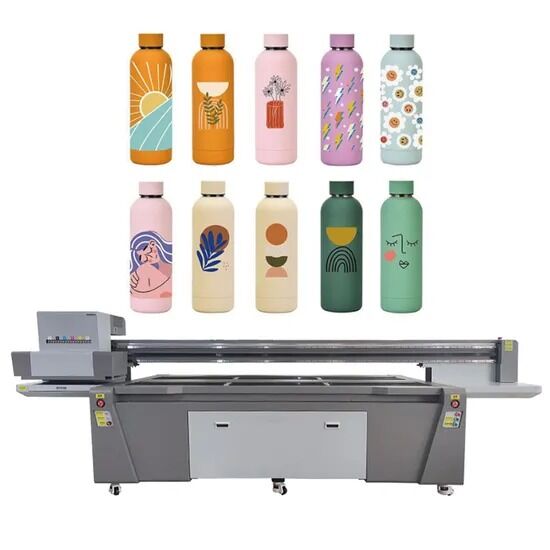

CF-2510 Duplex Cylinder UV Printer
Advanced UV Printing Technology
The CF-2510 Duplex Cylinder UV Printer delivers exceptional print quality with advanced inkjet technology, designed for industrial manufacturing applications.
Key Features
- High Precision: 3.5pl droplet size provides optimal throughput and print quality for various applications
- High Resolution: Multiple inkjet schemes for different printing materials with accurate colors, distinct layers, and uniform transitions
- Intelligent Maintenance: Automatic nozzle flashing and moisture retention during non-working states to prevent ink curing blockages
Technical Specifications
| Equipment Model |
CF-2510 (Duplex) |
| Nozzle Selection |
Ricoh GEN 5i |
| Print Size |
235cm × 63.2cm |
| Printing Height |
0-15cm (Customizable) |
| Equipment Size |
412cm × 159cm × 144cm |
| Equipment Weight |
860kg |
| Printing Software |
Photoprint / PrintFactory |
| Ink Type |
LED Environmental Protection UV Ink |
| Ink Colors |
W + CMYK + Varnish |
| Maximum Power |
3000W |
| Effective Orifice |
1280 |
| Ink Drop Volume |
3.5PL |
| Nozzle Length |
27MM |
| Single Nozzle Color |
4 |
| Rated Voltage |
240V 50/60HZ |
Manufacturer Profile
Guangzhou Skydeekenutek Co., Ltd. specializes in manufacturing and distributing UV printing equipment including UV printers, single-pass UV printers, UV flatbed printers, UV mesh belt printers, banner printers, and crystal label printers.
Our 2500 m² factory in Panyu, Guangzhou employs over 10 R&D staff and 150 workers. We maintain ISO certification with strict quality control and production management systems. With over 10 years of UV printer manufacturing experience, we support OEM and ODM services and export to France, Germany, Vietnam, India, and other countries. All products carry CE and RoHS certifications.
Packaging & Shipping
Certifications
Frequently Asked Questions
Do I need white ink and varnish ink?
White ink enables printing on virtually any media by serving as a primer for non-white materials and generating high-quality graphics. Varnish enhances print brightness and extends UV ink fade resistance.
What materials can UV flatbed printers print on?
All flatbed media including PP/PVC boards, KT boards, acrylic, plexiglass, metal, tiles, phone cases, wood boards, rigid identification boards, hard cardboard, corrugated boxes, glass, and furniture. UV printing eliminates coating requirements and prevents fading and blistering.
Which languages does the RIP installation interface support?
Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Simplified Chinese, and Traditional Chinese.
How is the after-sales service?
Our experienced technical team provides comprehensive support, including operational training until full proficiency is achieved. International technical assistance and on-site machine testing and repair services are available.
Regarding printer maintenance
We recommend daily ink purging when starting the printer. For extended non-use periods exceeding 10 days, clean the print head with cleaning fluid and maintain nozzle moisture.
Are you a factory or a foreign trade company?
We are a direct manufacturer, enabling us to offer competitive pricing and high-quality service support.
